Features Parker single vane pump

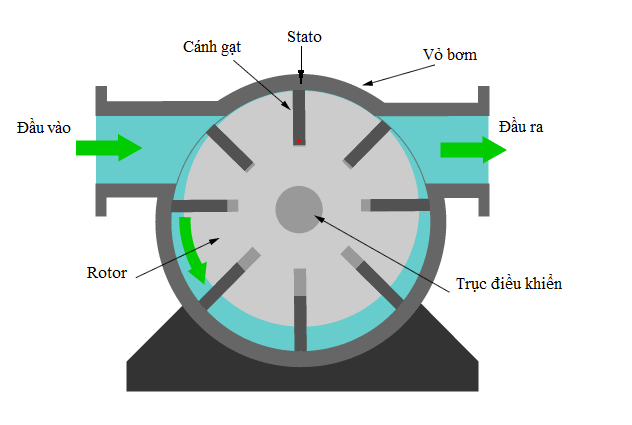

Construction of a single vane pump includes the following components:

• Cylindrical pump housing
• The rotor is inside the pump housing, the stator
• Control axis
• Vane
• The flat plates are located on the center of the rotor
• Pump grooves
• Pump compartment consists of 1 suction chamber and 1 push chamber
• Input, output
• Seal
• Single-acting vane pumps usually have 4-12 impellers and the more the number of veneers, the more evenly pumped.

Working principle of single vane pump

When the single vane pump connects to the power supply and starts operating, the pump control shaft begins to move, causing the rotor to rotate. Since the single vane pump has the pump housing center and the rotor is spaced apart, when the rotor rotates the plates slide in the grooves and the wiper moves.

Application of single vane pump

The vane pump has a wide range of applications thanks to its special pump construction and its simple principle of operation. Specific applications for vane pumps include:

• Application in hydraulic systems
• Medium pressure and low-pressure oil applications
• Applications for oil press systems for machine tools such as drills, boring machines, lathes, ...
• Applied in pressure casting industry;
• Application in chemical industry
• Application in food industry
• Application in the mining industry.
• Applications for oil pump, liquid pump, wood chemical pump, soap, detergent, sugar pump, syrup pump, feed pump, adhesive pump, etc.
